How to Design a More Efficient Compressed Air Layout

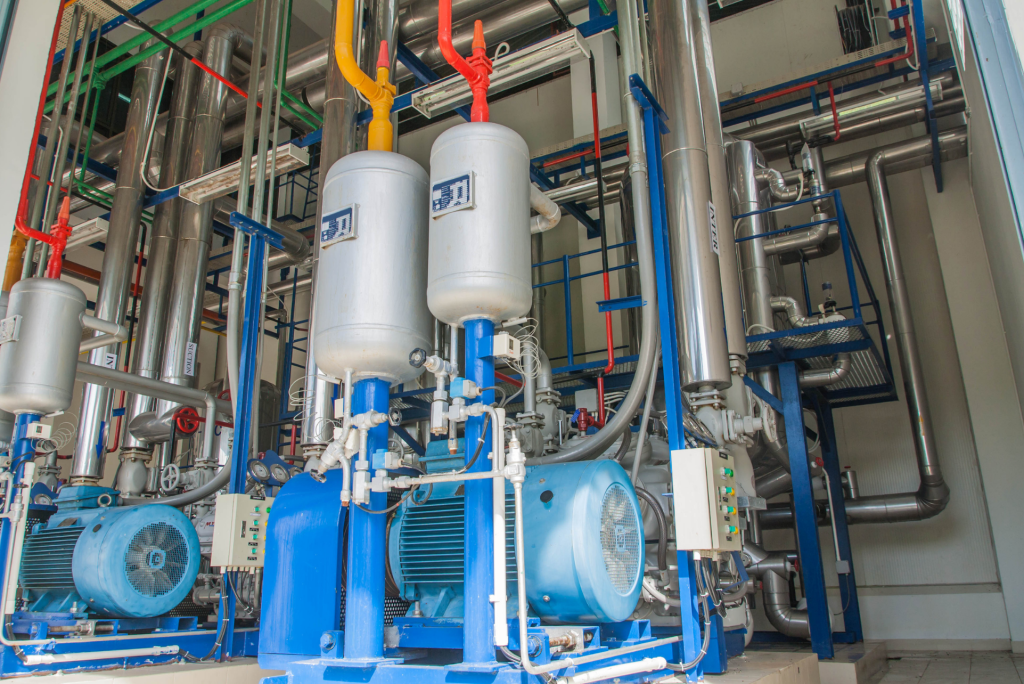

A compressed air system can have decent equipment throughout and still feel like it is constantly working harder than it should. We come across that quite a lot. Good compressor. Good dryer. Properly sized air receiver. Yet operators are still chasing pressure issues or wondering why energy costs keep creeping up.
Usually, the layout has something to do with it.
Compressed air is unforgiving when systems grow without much planning behind them. A new machine gets added here, another branch line appears there, someone extends pipework during a shutdown because it is the quickest option at the time. Before long, air is travelling around the building in ways nobody originally intended.
The system still runs. Mostly. But it becomes inefficient in subtle ways that build up over time.
Designing a better layout is less about making everything look neat on a drawing and more about understanding how air behaves once the site is actually operating.
Why Layout Problems Often Go Unnoticed for Years
One of the tricky things with compressed air systems is that problems rarely appear overnight.
Performance slowly drops off. Pressure settings get adjusted upwards. Extra compressors get added to “help out”. Operators adapt to poor performance because the changes happen gradually enough that nobody really questions it.
Then eventually someone notices the compressors seem to be running almost constantly.
Most people naturally focus on the compressor itself because that is the expensive bit everyone can see.
But airflow restrictions across an entire site quietly cost businesses money every single day.
Start by Looking at the Site Properly
Before redesigning anything, it helps to walk the site and see how compressed air is actually being used. Not how it was designed to be used ten years ago.
Because those are usually two very different things.
Demand changes throughout the day
Some production areas draw air steadily and predictably. Others do not.
Packaging machinery, automated equipment, blast systems, pneumatic tooling. They all create different demand patterns. Some spike heavily for short periods, which can upset the whole system if there is not enough storage nearby.
A fairly common mistake is treating overall demand as one single number rather than looking at where and when the air is being used.
That is why additional air receiver tanks can make such a noticeable difference in certain systems. Especially when they are installed close to problem areas rather than simply next to the compressor.
Sometimes you do not need more compressed air at all. You just need the system to handle demand changes more calmly.
Leave room for expansion, even if you think you will not need it
Most factories expand eventually. Even the ones convinced they will not.
Another machine arrives. Production shifts increase. Someone decides to automate part of the process six months later. Suddenly, the compressed air system has to support equipment it was never designed for.
You can usually spot systems that have grown reactively over time because the pipework starts looking like it was added in stages by different people over several years.
Leaving sensible spare capacity in the layout from the beginning saves a lot of headaches later.
Pipework Does More Than Just Move Air Around
This is probably one of the biggest things people underestimate.
Pipework design has a huge influence on how the whole compressed air system behaves day to day. Pressure stability, efficiency, moisture control, even maintenance access. It all ties back into the layout.
Airflow does not like unnecessary resistance
Every bend, fitting, reducer, flexible hose, and unnecessary pipe run creates restriction.
Individually it may not look like much, but once you spread those losses across an entire facility, the effect becomes noticeable. Particularly on larger systems where air is travelling longer distances.
The best-performing systems usually have fairly straightforward airflow paths. Nothing overly clever. Just sensible routing that allows air to move without constantly fighting restrictions.
Ring mains tend to behave better in busy systems
For larger production facilities, ring mains nearly always make more sense than simple branch systems.
Instead of air only travelling in one direction, it can flow around the system from multiple sides. That helps maintain more stable pressure when demand suddenly increases somewhere on site.
You tend to notice the difference most during busy production periods.
With basic branch layouts, the furthest equipment often suffers first. Tools slow down, pressure drops become more obvious, and operators compensate manually. Ring mains generally smooth a lot of that out.
They also make future expansion easier, which matters more than people initially think.
Air Receivers Need to Work With the System
Air receivers are sometimes treated as separate pieces of equipment rather than part of the overall layout strategy.
In reality, storage has a major influence on how stable the system feels.
Storage smooths things out
Compressed air demand constantly fluctuates. Even on sites that seem relatively stable.
Without enough storage, compressors end up reacting to every small pressure change. You can hear it happening sometimes. Compressors loading and unloading repeatedly throughout the day instead of operating steadily.
That kind of stop-start behaviour is rarely ideal long term.
A properly sized air receiver helps absorb those fluctuations and gives the system a bit of breathing room. Particularly during short bursts of heavy demand.
The Air Receiver Tank Location Matters
Primary receivers near the compressor are important, obviously. But secondary receivers closer to high-demand equipment can often solve localised pressure problems surprisingly well.
We have seen businesses assume they needed larger compressors when the real issue was simply poor storage positioning.
Horizontal and vertical air receivers both have their place depending on space, access, and system requirements. There is not really a universal “best” option there. It depends entirely on the site, you may even be better off with a bespoke receiver designed for you by our expert team.
Efficiency Normally Comes From Small Improvements Added Together
Most compressed air efficiency gains are not dramatic.
It is usually a combination of smaller improvements that gradually reduce waste across the system. Better airflow. Reduced pressure drop. Improved storage. Fewer restrictions.
Nothing particularly glamorous. Just practical improvements that make the system operate more smoothly.
Higher pressure settings are often masking another issue
One thing we see regularly is systems compensating for layout inefficiencies by increasing operating pressure.
It solves the immediate complaint because the machines receive the pressure they need eventually, but the compressor ends up working harder across the entire system.
That approach adds cost quietly in the background month after month.
Usually, if pressure settings keep creeping upwards over time, it is worth stepping back and looking at the layout properly rather than assuming the compressor is the problem.
Cleaner layouts are normally easier to maintain
This sounds obvious, but it matters.
Leaks are easier to find in organised systems. Isolation is simpler. Maintenance causes less disruption. Future modifications become easier as well.
Compressed air leaks will always happen eventually. No system stays perfect forever. The goal is making the system manageable enough that those problems do not spiral.
Conclusion
The best compressed air layouts are rarely the most complicated ones.
Usually, they are the systems that feel stable, balanced, and easy to work with day after day. Pressure stays consistent, moisture remains under control, and operators are not constantly compensating for recurring issues.
A good layout also gives businesses flexibility. And that becomes increasingly important because very few production environments stay unchanged for long.
If you are reviewing an existing compressed air system or planning a new installation, it is worth looking at the whole picture rather than focusing purely on compressor output. Pipework design, storage capacity, airflow behaviour, and future expansion all have a bigger impact than many people initially expect.
Every compressed air system behaves slightly differently once it is operating in the real world, which is why layout planning is rarely a one-size-fits-all job. Taking the time to review airflow, storage, pipework, and future demand properly can make a noticeable difference to reliability and running costs over time.
If you are looking at improving an existing setup or planning a new installation, we are always happy to offer guidance on air receiver selection and overall system design. Speak to the expert team today to see how we can help not only with your air receiver requirements but also with everything else that goes alongside them.
